# TCP 通信

Qt 需要 network 模块实现套接字通信,在 pro 文件中提前加入。所有通信函数与 C++ 封装 TCP 通信类似。

# 通信与函数

TCP通信函数

# TCP 通信案例

# 服务端

# UI

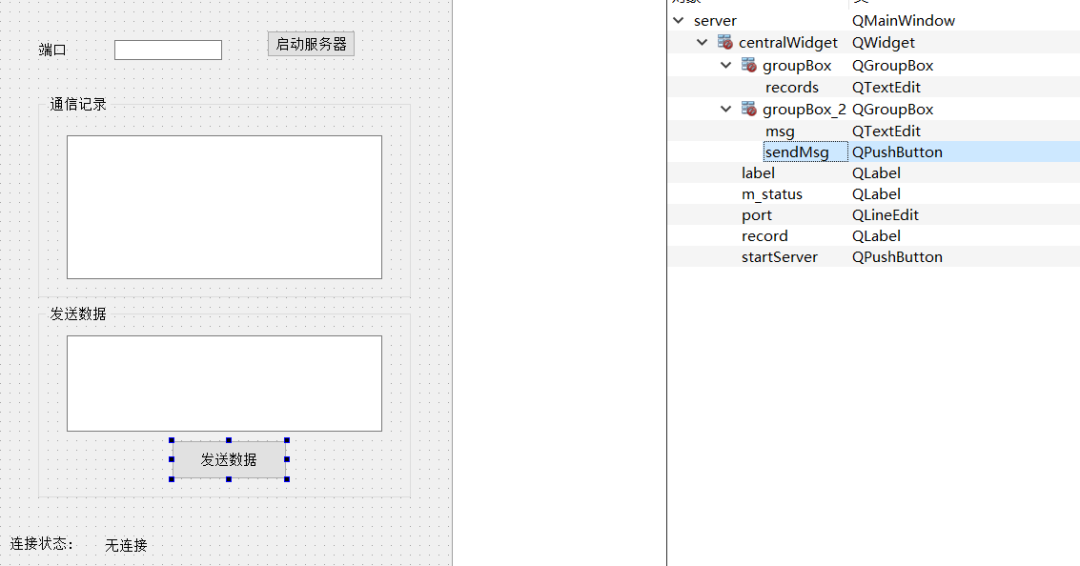

服务端

# server.h

#ifndef SERVER_H
#define SERVER_H
#include <QMainWindow>
#include <QTcpSocket>
#include <QTcpServer>
namespace Ui {
class server;
}
class server : public QMainWindow
{
    Q_OBJECT
public:
    explicit server(QWidget *parent = nullptr);
    ~server();
private slots:
    void on_startServer_clicked();
    void on_sendMsg_clicked();
private:
    Ui::server *ui;
    QTcpServer* m_server;
    QTcpSocket* m_tcp;
};
#endif // SERVER_H

# server.cpp

#include "server.h"
#include "ui_server.h"
server::server(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::server)
{
    ui->setupUi(this);
    setWindowTitle("TCP - 服务器");
    // 创建 QTcpServer 对象
    m_server = new QTcpServer(this);
    // 检测是否有新链接
    connect(m_server,&QTcpServer::newConnection,this,[=]()
    {
       m_tcp = m_server->nextPendingConnection(); // 获取 TCP 连接
       ui->m_status->setText("已连接");
       ui->records->append("成功和客户端建立了新连接");
       // 客户端发送过来了数据
       connect(m_tcp,&QTcpSocket::readyRead,this,[=]()
       {
           // 接受数据
           QString recvMsg=m_tcp->readAll();
           ui->records->append("客户端say:" + recvMsg);
           ui->records->setAlignment(Qt::AlignRight);
       });
       // 客户端断开了连接
       connect(m_tcp,&QTcpSocket::disconnected,this,[=]()
       {
            ui->records->append("客户端已经断开了连接");
            m_tcp->deleteLater();
            ui->m_status->setText("已断开");
       });
    });
}
server::~server()
{
    delete ui;
}
void server::on_startServer_clicked()
{
    unsigned short port = ui->port->text().toInt();
    // 设置服务器监听
    m_server->listen(QHostAddress::LocalHost,port);
    ui->startServer->setEnabled(false);
}
void server::on_sendMsg_clicked()
{
    QString sendMsg = ui->msg->toPlainText();
    m_tcp->write(sendMsg.toUtf8());
    ui->records->append("服务器Say:" + sendMsg);
    ui->records->setAlignment(Qt::AlignLeft);
    ui->msg->clear();
}

# 客户端

# UI

客户端

# `client.h``

#ifndef CLIENT_H
#define CLIENT_H
#include <QMainWindow>
#include <QTcpSocket>
namespace Ui {
class client;
}
class client : public QMainWindow
{
    Q_OBJECT
public:
    explicit client(QWidget *parent = nullptr);
    ~client();
private slots:
    void on_connect_clicked();
    void on_close_clicked();
    void on_send_clicked();
private:
    Ui::client *ui;
    QTcpSocket* m_tcp;
};
#endif // CLIENT_H

# client.cpp

#include "client.h"
#include "ui_client.h"
client::client(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::client)
{
    ui->setupUi(this);
    setWindowTitle("TCP - 客户端");
    // 创建通信的套接字对象
    ui->ip->setText("127.0.0.1");
    m_tcp = new QTcpSocket(this);
    ui->close->setEnabled(false);
    // 检测是否和服务器连接成功
    connect(m_tcp,&QTcpSocket::connected,this,[=]()
    {
        ui->rec->append("恭喜,服务器连接成功!");
        ui->status->setText("已连接");
    });
    // 检测服务器是都恢复了数据
    connect(m_tcp,&QTcpSocket::readyRead,[=]()
    {
        QByteArray recvMsg = m_tcp->readAll();
        ui->rec->append("服务器say:"+recvMsg);
        ui->rec->setAlignment(Qt::AlignRight);
    });
    // 检测服务器是否断开了连接
    connect(m_tcp,&QTcpSocket::disconnected,this,[=]()
    {
        ui->rec->append("服务器已经断开了连接");
        ui->connect->setEnabled(true);
        ui->close->setEnabled(false);
    });
}
client::~client()
{
    delete ui;
}
void client::on_connect_clicked()
{
    QString ip = ui->ip->text();
    unsigned short port = ui->port->text().toInt();
    // 连接服务器
    m_tcp->connectToHost(ip,port);
    ui->connect->setEnabled(false);
    ui->close->setEnabled(true);
}
void client::on_close_clicked()
{
    m_tcp->close();
    ui->connect->setEnabled(true);
    ui->close->setEnabled(false);
}
void client::on_send_clicked()
{
    QString sendMsg = ui->msg->toPlainText();
    m_tcp->write(sendMsg.toUtf8());
    ui->rec->append("客户端Say:"+sendMsg);
    ui->rec->setAlignment(Qt::AlignLeft);
    ui->msg->clear();
}

TCP通信

# UDP 通信

Qt 的客户端和服务端不区分,实现双向通信,彼此即是服务端,也是接收端

UDP通信流程

# UDP 通信案例

# 服务端

# UI

服务端UI

# server.h

#ifndef UDF_SERVER_H
#define UDF_SERVER_H
#include <QMainWindow>
#include <QUdpSocket>
namespace Ui {
class udf_server;
}
class udf_server : public QMainWindow
{
    Q_OBJECT
public:
    explicit udf_server(QWidget *parent = nullptr);
    ~udf_server();
private slots:
    void on_send_clicked();
    void on_connect_clicked();
private:
    Ui::udf_server *ui;
    QUdpSocket* server;
};
#endif // UDF_SERVER_H

# server.cpp

#include "udf_server.h"
#include "ui_udf_server.h"
udf_server::udf_server(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::udf_server)
{
    ui->setupUi(this);
    setWindowTitle("UDP 服务器");
    server = new QUdpSocket(this);
    ui->ip->setText("127.0.0.1");
    ui->port_self->setText("8888"); // 当前主机绑定端口号
    // 读取对方发送的数据
    connect(server,&QUdpSocket::readyRead,this,[&]()
    {
        QByteArray datagram;
        datagram.resize(server->pendingDatagramSize());
        server->readDatagram(datagram.data(),datagram.size()); // 读数据
        ui->recev->append("对方:"+datagram);
    });
}
udf_server::~udf_server()
{
    delete ui;
}
void udf_server::on_send_clicked()
{
    // 发送环节设置
    // 读取要发送的内容
    QByteArray datagram = ui->send_text->toPlainText().toUtf8();
    // 发送的信息,大小,IP 和端口
    server->writeDatagram(datagram.data(),datagram.size(),QHostAddress(ui->ip->text()),ui->port->text().toInt());
    ui->recev->append("本机" + ui->send_text->toPlainText());
    ui->send_text->clear();
}
// 启动服务器
void udf_server::on_connect_clicked()
{
    // 当前服务端绑定端口号
    server->bind(QHostAddress(ui->ip->text()),ui->port_self->text().toInt()); // 设置当前主机绑定的端口
    ui->connect->setEnabled(false);
}

# 客户端

# UI

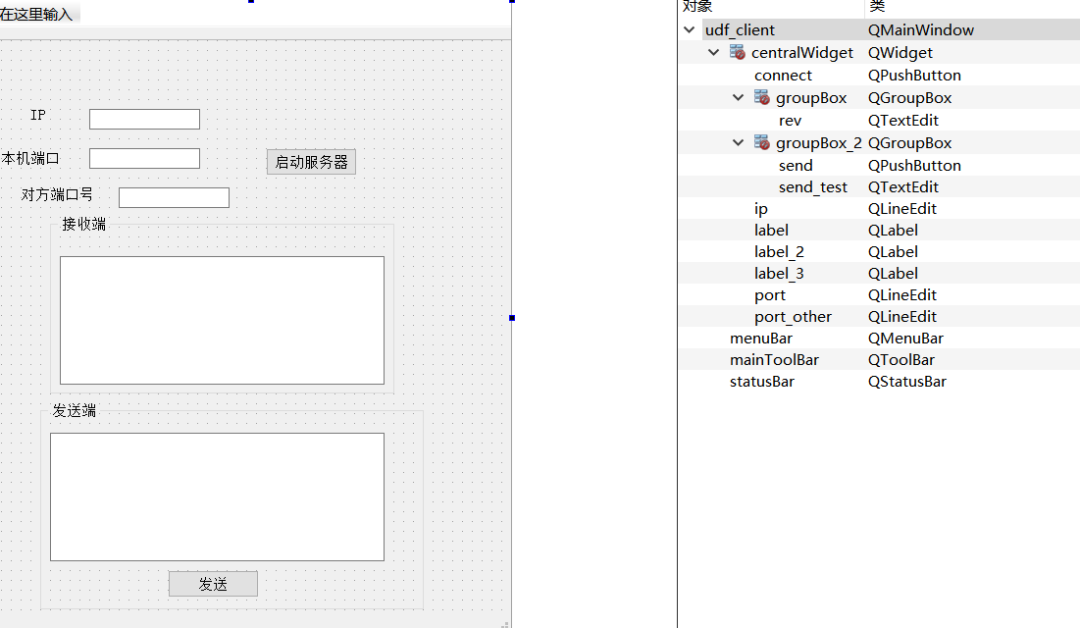

客户端UI

# client.h

#ifndef UDF_CLIENT_H
#define UDF_CLIENT_H
#include <QMainWindow>
#include <QUdpSocket>
namespace Ui {
class udf_client;
}
class udf_client : public QMainWindow
{
    Q_OBJECT
public:
    explicit udf_client(QWidget *parent = nullptr);
    ~udf_client();
private slots:
    void on_connect_clicked();
    void on_send_clicked();
private:
    Ui::udf_client *ui;
    QUdpSocket * recever;
};
#endif // UDF_CLIENT_H

# client.cpp

#include "udf_client.h"
#include "ui_udf_client.h"
udf_client::udf_client(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::udf_client)
{
    ui->setupUi(this);
    setWindowTitle("UDP 绑定IP");
    ui->ip->setText("127.0.0.1");
    recever = new QUdpSocket(this);
}
udf_client::~udf_client()
{
    delete ui;
}
void udf_client::on_connect_clicked()
{
    // 点击连接之后,进入接受状态
    recever->bind(QHostAddress(ui->ip->text().toInt()),ui->port->text().toInt()); // 绑定 IP
    connect(recever,&QUdpSocket::readyRead,this,[&]()
    {
        QByteArray datagram;
        datagram.resize(recever->pendingDatagramSize());
        recever->readDatagram(datagram.data(),datagram.size()); // 读数据
        ui->rev->append("对方:"+datagram);
    });
    ui->connect->setEnabled(false);
    //ui->rev->setEnabled(false);
}
void udf_client::on_send_clicked()
{
    // 发送环节设置
    // 读取要发送的内容
    QByteArray datagram = ui->send_test->toPlainText().toUtf8();
    // 发送的信息,大小,IP 和端口
    recever->writeDatagram(datagram.data(),datagram.size(),QHostAddress(ui->ip->text()),ui->port_other->text().toInt());
    ui->rev->append("本机" + ui->send_test->toPlainText());
    ui->send_test->clear();
}

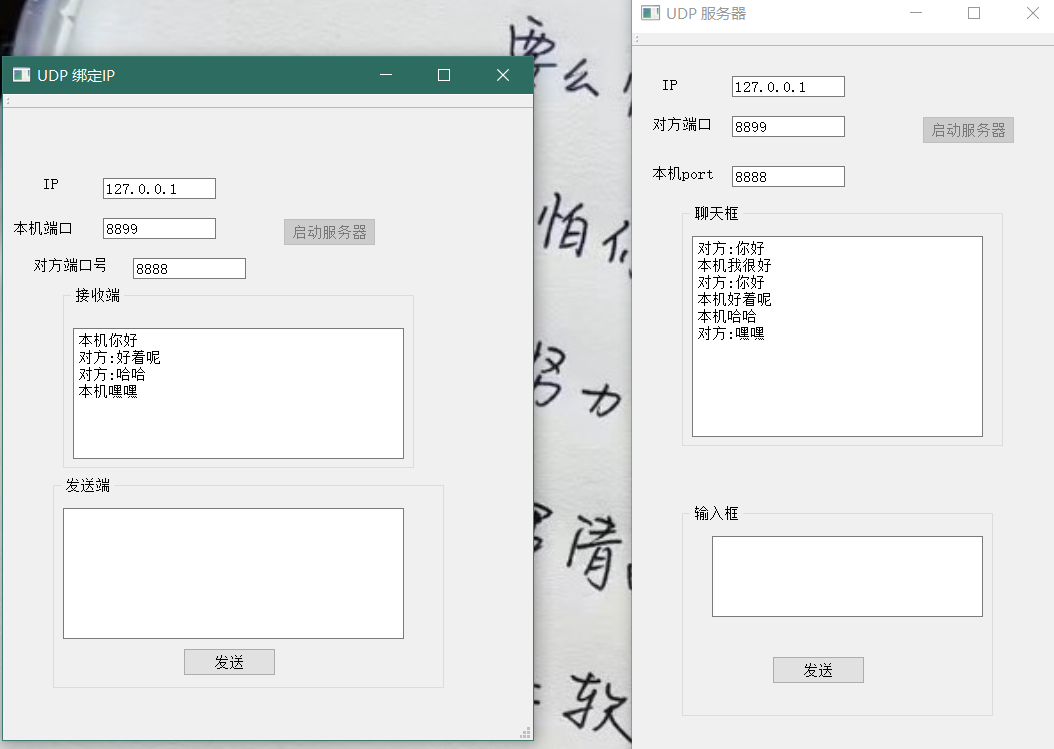

UDP通信

# TCP 文件传输

客户端连接服务器,可以实现多种文件向服务器进行发送

# 服务端 ` 接收端

# UI

服务端UI

# server.h

#ifndef SERVER_H
#define SERVER_H
#include <QMainWindow>
#include <QTcpSocket>
#include <QTcpServer>
#include <QFile>
#include <QTimer>
#include <QFileDialog>
#include <QFileInfo>
#include <QDebug>
#include <QMessageBox>
namespace Ui {
class server;
}
class server : public QMainWindow
{
    Q_OBJECT
public:
    explicit server(QWidget *parent = nullptr);
    ~server();
private slots:
    void on_startServer_clicked();
private:
    Ui::server *ui;
    QTcpServer* m_server;
    QTcpSocket* m_tcp;
    bool headinfo = true;
    QString filename;
    qint64 filesize;
    qint64 recvsize;
    QFile file;
};
#endif // SERVER_H

# server.cpp

#include "server.h"
#include "ui_server.h"
server::server(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::server)
{
    ui->setupUi(this);
    setWindowTitle("TCP - 服务器接受文件");
    // 创建 QTcpServer 对象
    m_server = new QTcpServer(this);
    // 客户端断开了连接
//    connect(m_tcp,&QTcpSocket::disconnected,this,[=]()
//    {
//         m_tcp->deleteLater();
//         ui->m_status->setText ("已断开");
//    });
}
server::~server()
{
    delete ui;
}
void server::on_startServer_clicked()
{
    unsigned short port = ui->port->text().toInt();
    // 设置服务器监听
    m_server->listen(QHostAddress::LocalHost,port);
    // 检测是否有新链接
    connect(m_server,&QTcpServer::newConnection,this,[&]()
    {
       m_tcp = m_server->nextPendingConnection(); // 获取 TCP 连接
       ui->m_status->setText("已连接");
       // 客户端发送过来了数据
       connect(m_tcp,&QTcpSocket::readyRead,this,[&]()
       {
            // 读取数据
           QByteArray array = m_tcp->readAll();
           if(headinfo)
           {
               headinfo = false;
               recvsize = 0;
               filename = QString(array).section("**",0,0); // 起始,结束
               filesize = QString(array).section("**",1,1).toInt();
               file.setFileName(filename); // 设置文件
               file.open(QIODevice::WriteOnly);// 只读的方式打开文件
               // 设置传输的进度条
               ui->progressBar->setMinimum(0);
               ui->progressBar->setMaximum(filesize / 1024);
               ui->progressBar->setValue(0);  // 设置当前值为 0
           }
           else
           {
               // 处理数据文件
                qint64 length = file.write(array);
                if(length > 0)
                {
                    recvsize +=length;
                }
                ui->progressBar->setValue(recvsize / 1024);
                qDebug() <<"接收大小"<< recvsize <<"文件大小"<< filesize;
                if(recvsize == filesize)
                {
                    QMessageBox::information(this,"完成","文件接受完成");
                    file.close();
                }
           }
       });
    });
}

# 客户端 发送端

# UI

客户端UI

# client.h

#ifndef CLIENT_H
#define CLIENT_H
#include <QMainWindow>
#include <QTcpSocket>
#include <QFile>
#include <QTimer>
namespace Ui {
class client;
}
class client : public QMainWindow
{
    Q_OBJECT
public:
    explicit client(QWidget *parent = nullptr);
    ~client();
private slots:
    void on_connect_clicked();
    void on_close_clicked();
    void on_send_clicked();
    void on_open_clicked();
private:
    Ui::client *ui;
    QTcpSocket* m_tcp;
    QString filename;
    qint64 filesize;
    QFile file;
    QTimer *myTimer;
};
#endif // CLIENT_H

# client.cpp

#include "client.h"
#include "ui_client.h"
#include <QFileDialog>
#include <QFileInfo>
#include <QDebug>
client::client(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::client)
{
    ui->setupUi(this);
    setWindowTitle("TCP - 客户端上传文件");
    // 创建通信的套接字对象
    ui->ip->setText("127.0.0.1");
    m_tcp = new QTcpSocket(this);
    ui->close->setEnabled(false);
    // 检测是否和服务器连接成功
    connect(m_tcp,&QTcpSocket::connected,this,[=]()
    {
        //ui->rec->append ("恭喜,服务器连接成功!");
        ui->status->setText("已连接");
        ui->connect->setEnabled(false);
        ui->close->setEnabled(true);
    });
    // 检测服务器是都恢复了数据
//    connect(m_tcp,&QTcpSocket::readyRead,[=]()
//    {
//        QByteArray recvMsg = m_tcp->readAll();
//        ui->rec->append ("服务器 say:"+recvMsg);
//        ui->rec->setAlignment(Qt::AlignRight);
//    });
    // 检测服务器是否断开了连接
    connect(m_tcp,&QTcpSocket::disconnected,this,[=]()
    {
        //ui->rec->append ("服务器已经断开了连接");
        ui->status->setText("未连接");
        ui->connect->setEnabled(true);
        ui->close->setEnabled(false);
    });
    myTimer = new QTimer(this);
    connect(myTimer,&QTimer::timeout,this,[&]()
    {
        myTimer->stop(); // 关闭定时器
        qint64 sendSize =0;
        qint64 len;
        do{
            char buf[4*1024] = {0};
            len = file.read(buf,sizeof(buf)); // 每次读取的空间
            m_tcp->write(buf,len); // 读取的文件缓冲区放到 buf 里面
            sendSize +=len;
            ui->progressBar->setValue(sendSize / 1024);
        }while(len >0);
        if(sendSize == filesize)
        {
            qDebug()<<"文件发送成功";
            file.close();
            m_tcp->disconnectFromHost();
            m_tcp->close();
        }
    });
}
client::~client()
{
    delete ui;
}
void client::on_connect_clicked()
{
    QString ip = ui->ip->text();
    unsigned short port = ui->port->text().toInt();
    // 连接服务器
    m_tcp->connectToHost(ip,port);
}
void client::on_close_clicked()
{
    m_tcp->close();
    ui->connect->setEnabled(true);
    ui->close->setEnabled(false);
}
void client::on_send_clicked()
{
    // 点击 开始之后,发送数据,先发送头名称和大小
    // 文件名 ** 文件大小
    QString head = filename + "**" + QString::number(filesize);
    qint64 length  = m_tcp->write(head.toUtf8()); // 将头文件发送过去
    if(length > 0)
    {
        qDebug()<<length;
        // 发送成功
        myTimer->start(20); //20 毫秒之后再发,避免粘包
    }
    else
    {
        // 发送失败
        file.close();// 关闭文件
    }
}
void client::on_open_clicked()
{
    QString filepath = QFileDialog::getOpenFileName(this);
    // 同时发送文件名称和文件大小
    QFileInfo FileData(filepath);
    filename = FileData.fileName(); // 文件名称
    filesize = FileData.size(); // 文件大小
    qDebug()<<"文件名"<<filename <<"  文件大小:"<<filesize;
    if(!filepath.isEmpty())
    {
        ui->file->setText(filename);
        file.setFileName(filepath); // 设置文件
        file.open(QIODevice::ReadOnly);// 只读的方式打开文件
    }
    // 设置传输的进度条
    ui->progressBar->setMinimum(0);
    ui->progressBar->setMaximum(filesize / 1024);
    ui->progressBar->setValue(0);  // 设置当前值为 0
}

文件发送
